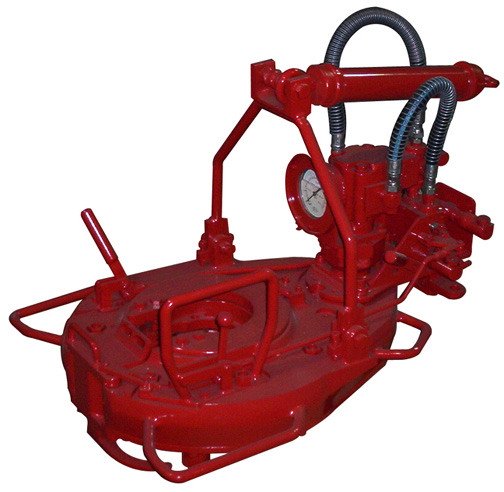

Model 4500 Power Tong

Model 4500

Features of Model 4500 Power Tong

Safety Lock Front Guard
High Torque
Light Weight for Easy Handling
Low Maintenance Design
Easy Shifting
Proven Durability


Options

Torque Load Cell
Hydraulic Back-up
Pneumatic Back-up


Dimensions Length: 43" (109.22cm)
Width: 31" (78.74cm)
Height: 26" (66.04cm)
Arm Length: 29" (73.66cm)
Weight: 620 lbs ( 281.2Kg)


Specifications

Pipe sizes: 1.05” to 4.5” (26.6mm to 114.3mm)
Torque ft.lb/Nm in low gear @2500 PSI (172 Bar): 6.670 ft. lbs (9,043 Nm)
Rated speed in high gear 30 GPM (114 LPM): 96 RPM
Torque Arm Length: 23" (584mm)
Nominal Power Requirements: 2,000 PSI (30 GPM)

(More information, including parts list and prices coming soon.)
