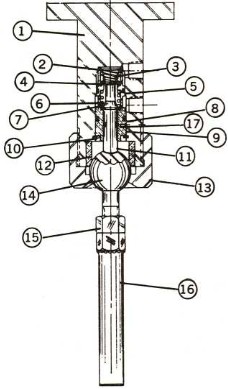

Crown-O-Matic Toggle Valve Referance Guide
| Pic # | Part # | Description | Price | | | SC 1000 | Complete Toggle Valve Assembly | $960.00 | | 1 | SC 1001 | Body (stainless Steel) | $489.00 | | 2 | SC 1002 | Retainer in (SC 90001R & 90002R) | in kits | | 3 | SC 1003 | Spring in (SC 90001R & 90002R) | in kits | | 4 | SC 1004 | Seat in (SC 90001R & 90002R) | in kits | | 5 | SC 1005 | O' Ring in (SC 90001R & 90002R) | in kits | | 6 | SC 1006 | Sleeve in (SC 90002R) | $15.50 | | 7 | SC 1007 | Spring (SC 90001R & 90002R) | $3.00 | | 8 | SC 1008 | O' Ring in (SC 90001R & 90002R) | in kits | | 9 | SC 1009 | Guide in (SC 90002R) | $42.00 | 10 | SC 1010 | Ring | $2.20 | | 11 | SC 1011 | Stem in (SC 90002R) | $50.00 | | 12 | SC 1012 | Ball Guide (Stainless Steel) | $72.00 | | 13 | SC 1013 | Cap (Stainless Steel) | $170.00 | | 14 | SC 1014 | Ball and Arm | $102.00 | | 15 | SC 1015 | Nut | $0.90 | | 16 | SC 1016 | Arm (extension) | $42.00 | 17 | SC 1017 | O' Ring in (SC 90001R& SC 90002R) | in kits | | SC 90001R | Minor Repair Kit | $60.00 | | SC 90002R | Major Repair Kit | $150.00 | | | | |
Click Here for Complete Crown O Matic Parts list
|
